Figure 6: Wool Weave Texture: (clockwise from top left) original image, reconstructed from the LSE, MLE, and Compressed image. A fourth order model was used.

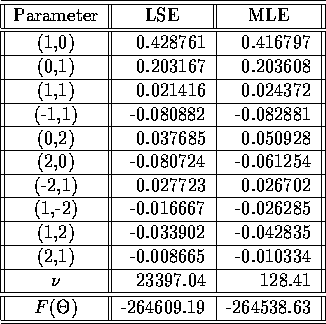

Table: Parameters for Wool Weave
The parameters for the image of wool weave in Figure 6 are given in Table 5.
Figure 7: Wood Texture: (clockwise from top left) original image, reconstructed from the LSE, MLE, and Compressed image. A fourth order model was used.

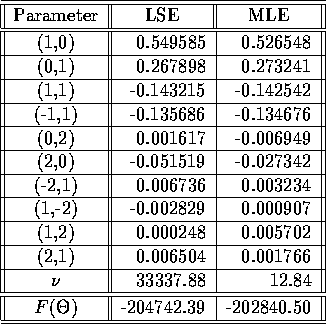

Table: Parameters for Wood Texture
The parameters for the image of wood texture in Figure 7 are given in Table 6.
Figure 8: Tree Bark Texture: (clockwise from top left) original image, reconstructed from the LSE, MLE, and Compressed image. A model whose parameters are listed below was used.

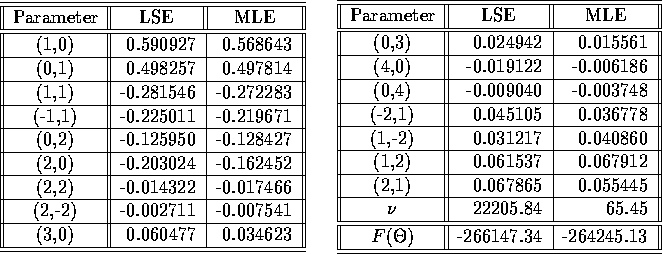

Table 7: Parameters for Tree Bark Texture
The parameters for the image of tree bark texture in Figure 8 are given in Table 7.
