Network

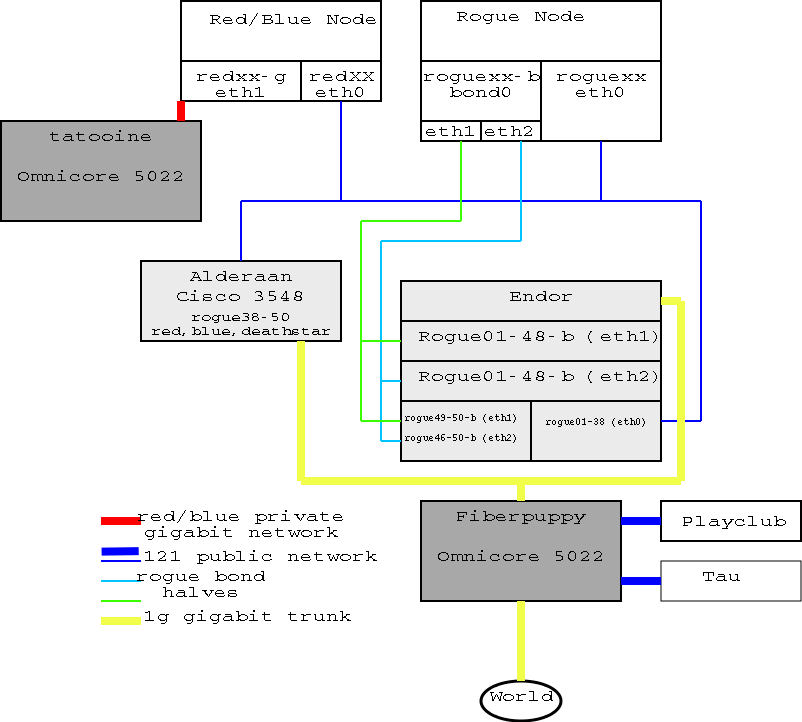

The cluster consists of a few varieties of Ethernet connected over equipment from Cisco, Alcatel, and Netgear. Below is a schematic of how the red, blue, and rogue nodes are connected.

The alphs nodes are connected to a 100mbit Netgear unmanaged switch that is connected uplinked to a different part of our network.

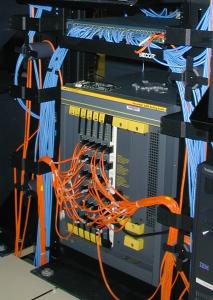

Alderaan and Tatooine

Name	Type	Performance	Architecture
Endor	Cisco Catalyst 4006	65Gb/s 45m packets/sec	crossbar
Alderaan	Cisco Catalyst 3548XL	10Gb/s 6.5m packets/sec	crossbar
Tatooine	Alcatel Omnicore 5022	22Gb/s 14.8m packets/sec	parallel access shared memory
Fiberpuppy	Alcatel Omnicore 5022	22Gb/s 14.8m packets/sec	parallel access shared memory
